2015 National Architecture Awards: Sustainable Architecture

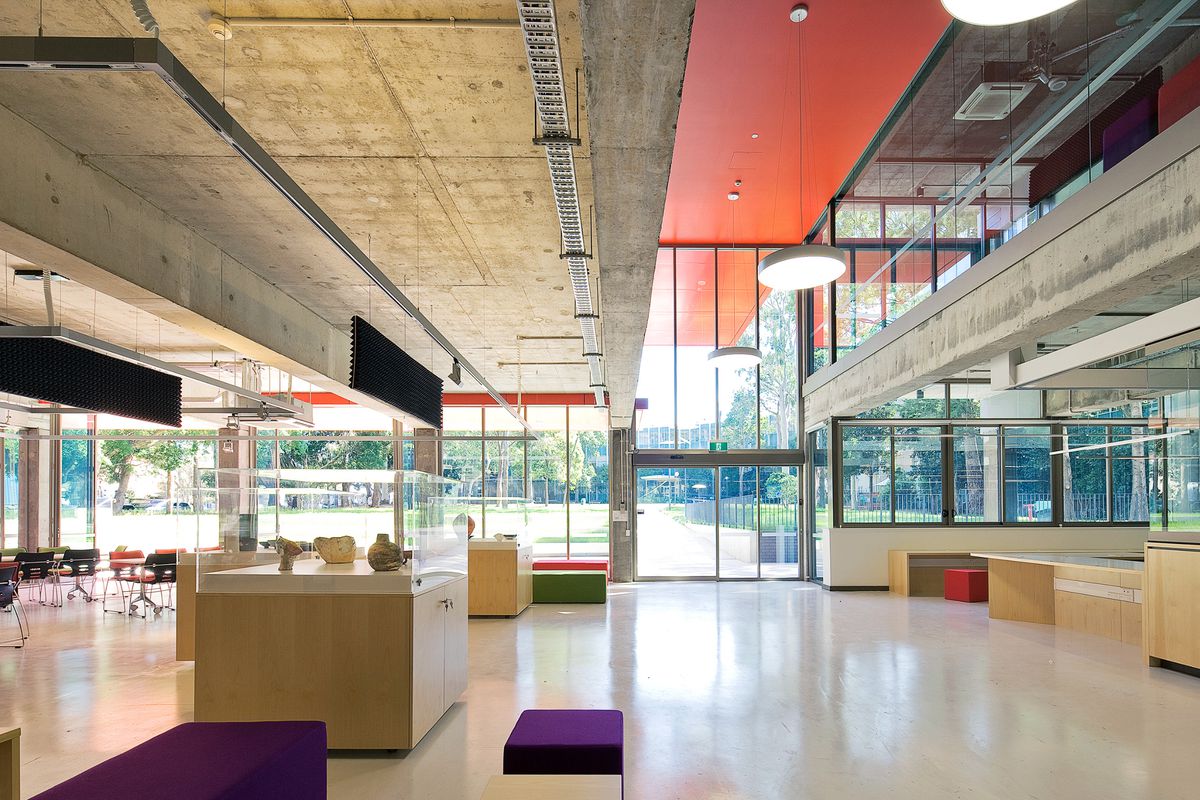

Cameraygal (formerly Dunbar building) by NSW Government Architect’s Office Sustainable Architecture: National Commendation Australian Institute of Architects

Jury citation

Located on the Northern Sydney Institute’s St Leonards Campus, Cameraygal is a noteworthy example of how adaptive re-use can benefit a college community and support contemporary learning on a modest budget. In its previous life it was a brutalist building, completed in 1967, and a sealed container for science education. Considered interventions enhance the building’s urban presence and relationship with the College Green while a new architectural narrative has been written to connect Cameraygal to its past. It’s now been converted into a living, breathing building, integrating sustainable operation modes and using them as educational tools.

A building management system integrates and informs occupants of all data collected from the building’s systems. Other interventions include solar panels on the roof and north-western facade and these service 75 percent of the operational power needs while also providing sunshading. Zoning of services has reduced operation costs. External glass has been replaced with high performance laminated glazing and there is extensive use of recycled and low-emission materials.

Cameraygal is a clever adaptation of what might have been considered an obsolete building. By keeping true to the robustness of the original building’s structural skeleton and efficient floor plate and then allowing more natural light to penetrate, by increasing cross-flow ventilation and by improving student amenity generally, an uplifting environment for contemporary learning has been created.

Credits

Architect
NSW Government Architects Office
Sydney, Sydney, NSW, Australia
Project Team
Carlos Sogari (design and project architect), Thomas Singleton
Consultants
Builder Watpac
Building surveyor NSW Public Works
Civil consultant NSW Public Works
Cost consultant NSW Government Architects Office
Electrical and communications consultant NSW Government Architects Office
Hydraulic consultant NSW Government Architects Office
Landscape and interior design NSW Government Architects Office
Lighting consultant NSW Government Architects Office
Mechanical consultant Cundall Johnston
Technical specifications NSW Government Architects Office, Kollanyi Architects
Site details
Category Commercial / public buildings
Type Universities / colleges
Project Details

Source

Award

Published online: 5 Nov 2015
Words: National Architecture Awards Jury 2015
Images: Simon Whitbread

Issue

Architecture Australia, November 2015
