The right fit: Christian Street House

Embracing the pleasures of constraint, this new house by James Russell Architect was designed to contextually inspired principles, creating a social and relaxed environment that suits the location’s subtropical way of life.

Clayfield, in Brisbane’s inner north, is an established suburb situated on gentle breezy hills with views to the bay and city centre. It is characterized by impressive homes constructed in a variety of styles, many exemplary of their particular era, including several designed by renowned architect Robin Dods.

This new house by James Russell Architect was the first to be built on land released after the demolition of the Riverton Early Parenting Centre in 2012, which had occupied a large plot since opening in 1942 as a mothercraft hostel.

Initial contact between the clients and the architect occurred five years ago. While a project didn’t come to fruition then, valuable discussion took place about the potentials of home building in a benign climate. When the client reconnected with James to consider the potential of the newly released Clayfield blocks for a “downsizing” house, the conversation reopened. A relaxed and sociably spaced home was sought by the clients to support the evolution of familial relationships as their three sons, currently aged from early teens to early twenties, grow into independence.

Space is formed around a grass court with openings organized to maintain privacy and prospect.

Space is formed around a grass court with openings organized to maintain privacy and prospect.

Image: Toby Scott

James counselled the clients to purchase a smaller four-hundred-square-metre block neighbouring an existing house on the northern boundary. It was a sensible move as it meant the home’s northern orientation could be designed in relation to a known condition, and defense to the south could be formed against the unknown.

As an established and historically significant suburb, Clayfield is subject to design planning codes regarding its character. James and his colleague John Ellway enjoyed their negotiations with Brisbane City Council over requirements relating to form, material and decoration. Embracing the pleasures of constraint, a tightly managed selection of materials was deployed according to clear and contextually inspired principles; an intelligent balm for the planner’s anxiety for “fitting in.” To meet a quirk in the character code, the street-side face is clad in clear-finished spotted gum. While painted brick was agreed upon for other boundary-facing walls, the experienced substance of the house is distilled into expressed brick and concrete.

The main bedroom opens onto a grassed rooftop terrace above the pool below.

The main bedroom opens onto a grassed rooftop terrace above the pool below.

Image: Toby Scott

This refined expression sits pleasingly in context. The boundary is delicately outlined with familiar galvanized pipe and chain wire fence and gates. The crisp white and fine-edged double gables are lofty and open to the street, and supported on slender circular steel posts, they shelter both the entry patio and a tandem car space. The timber walls set back beneath give little away. For the most part, the house reserves its social energy for the interior, although when the boys feel like it, the barn doors of a small and informal street-side lounge can be thrown wide open in a friendly display.

From first sketch to final plan, the idea was to stretch the dwelling along the southern edge in an expanding and contracting arrangement of solid-void-solid. Space is formed around a grass court with openings organized to maintain privacy in prospect. A shadowy spine connects the house along the southern boundary, interspersed with smaller voids to passively purchase further climatic advantage. Making use of the fall of the land, the house digs in below street level, hard against the side boundaries. A secondary entrance sidles down a narrow stair on the southern edge, primarily for the adult sons to come and go without disturbing the household but also for accessing an ingenious sub-floor workshop.

The material language of the Christian Street House is raw and resilient, requiring low ongoing maintenance.

The material language of the Christian Street House is raw and resilient, requiring low ongoing maintenance.

Image: Toby Scott

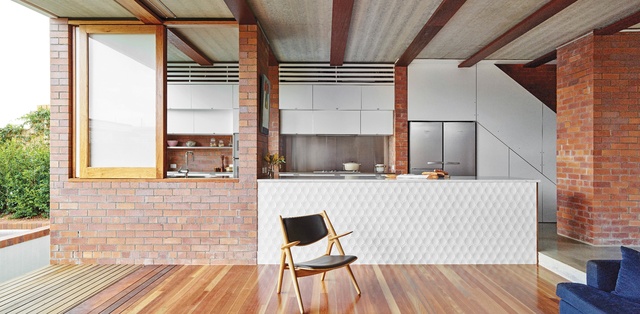

The material language of the house is fastidious in its economical support of form and space and selected for its inherent “self-finishing” properties and low ongoing maintenance. The interior spaces immediately off the patio are timber-lined. The warm figuration of spotted gum gives way to expressed brick, its courses opened to make screens for a breezeway that buffers and extends into the private quarters of the client couple. From this early point, a stair connects down to the garden court, which creates the breathing space for the diverse elements to share its edge as required and take advantage of light and air. The three sons’ cave-like quarters enjoy it more secretly, while the living space opens wide upon it as space flows enticingly through to the visual magnet of a small pool set along the eastern edge. While the larger gable runs the full length of the house, the smaller gable covers the two rooms – the little lounge and the couple’s library – that participate quietly in bookending the garden void at the upper level. A functionally elongated “his and hers” kitchen that serves the living and dining areas, completes the southern servant spine.

The other significant material is concrete, formed in situ for the base-level elements and installed in hollow precast panels for the upper floor. With an excellent off-form finish, the undersides of the precast panels act as ceiling, with joints masked by timber elements that also hide LED strip lighting.

Just as a poem can be expressed in the form of a solitary line or in the multiple verses of a cosmic saga, so can architecture be spare or surging. While some architects layer their work with details and features, others deliberately and continually focus on distillation and refinement, towards maximizing the affective power of architecture through the most minimal means. Arguably, James Russell Architect is one such practice; and the striking Christian Street House is a fascinating haiku of contextually elegant forms carefully described in the language of resilient materials.

Products and materials

Roofing
Delta Panels DeltaOrb pre-finished insulated panels in Zincalume
External walls
PGH Bricks and Pavers single-skin structural brick in Dulux ‘Natural White’; New Guinea rosewood shiplap cladding in Feast Watson waterproof varnish
Internal walls
PGH Bricks and Pavers single-skin structural brick in Dry-Treat penetrating sealer; tongue-and-groove spotted gum finished in Feast Watson Scandinavian Oil
Windows and doors
Allkind Joinery and Glass timber frames
Flooring
Tongue-and-groove spotted gum floorboards in 2-pac finish; concrete slab with steel trowel finish
Lighting
Prime Electronics and Jaycar Electronics LED strip lighting
Kitchen
Gaggenau cooking appliances; Miele fridge and dishwasher; carrara marble benchtop; white melamine joinery by Wyer and Craw; Grohe tapware
Bathroom
Spotted gum joinery by William McMahon Cabinetmaker; Carrara marble benchtop; Bette basin; Grohe tapware
Heating and cooling
Climatrol Air Conditioning ducted airconditioning in Hollow Core precast concrete flooring
External elements
Spotted gum decking, oiled; PGH Bricks- and Pavers brick laid on edge

Credits

Architect
James Russell Architect
Brisbane, Qld, Australia
Project Team
James Russell, John Ellway
Consultants
Engineer STA Consulting
Joiner Wyer and Craw, William McMahon Cabinetmaker
Site details
Site type Suburban
Site area 402 m2
Building area 280 m2
Category Residential buildings
Project Details
Status Built
Completion date 2014
Design, documentation 8 months
Construction 9 months

Source

Project

Published online: 15 Jun 2015
Words: Sheona Thomson
Images: Toby Scott

Issue

Houses, April 2015
