Independent integration: Crown 515

A new set of five apartments by Smart Design Studio discreetly wraps around an existing terrace facade, while announcing itself to the street in a bold, white sculptural form.

Heritage redevelopment and infill has had a patchy history in Sydney. From the 1950s onwards many of Sydney’s handsome sandstone and masonry buildings were wiped away by architects and developers who built brown concrete monstrosities in their place. The 1980s saw uncomfortable pastiches of facades with no coherence and little aesthetic merit. Progress was made in the 1990s when architects began to engage directly with extant heritage structures and took the sensitive – if somewhat conservative – approach of clearly delineating new work from old. A respectful distance was maintained between the two with an explicit distinction in materiality – the old building a structure of masonry and the new of crisp steel and glass. In Crown 515 in Sydney’s Surry Hills, Smart Design Studio is signalling the next phase of a far more robust and sophisticated engagement with heritage redevelopment; an approach that allows old and new to have an equal voice in the way our cities are formed.

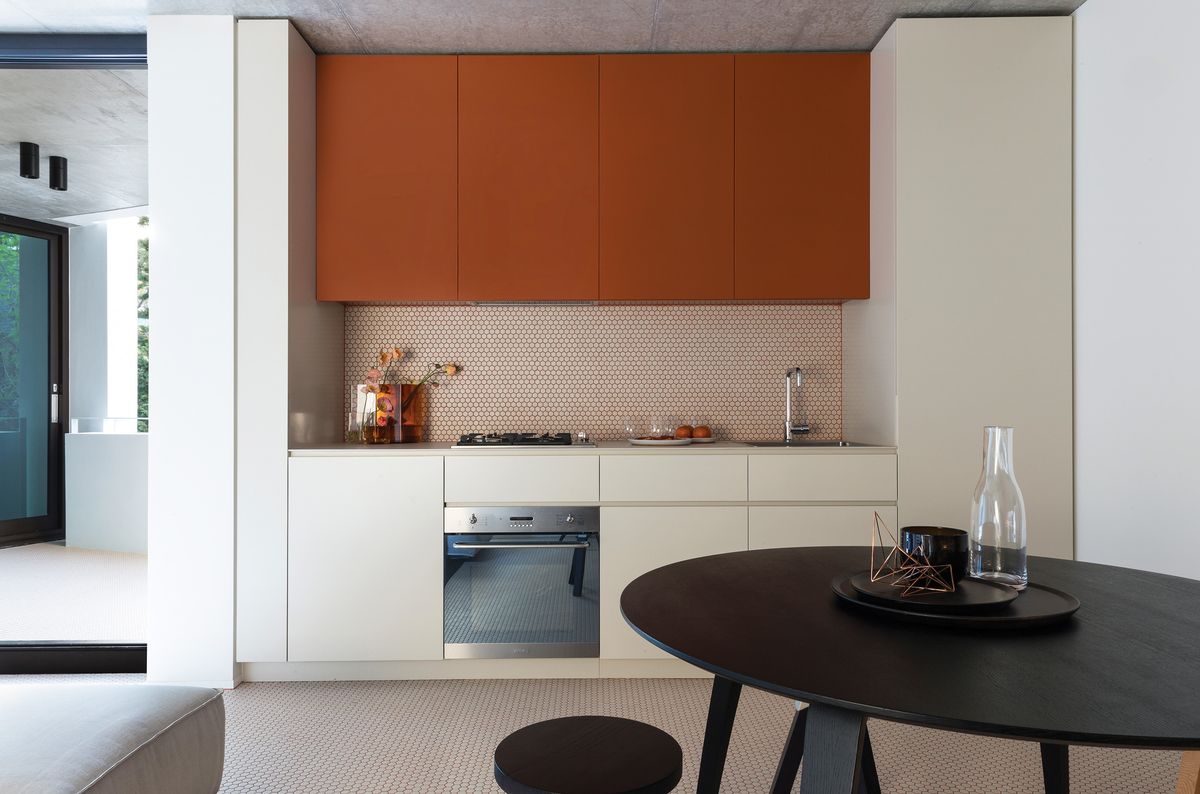

Within each unit the tile grout and joinery has been colour matched. A burnt sienna colour palette has been used in the two-bedroom first-floor apartment.

Within each unit the tile grout and joinery has been colour matched. A burnt sienna colour palette has been used in the two-bedroom first-floor apartment.

Image: Ross Honeysett

Surry Hills is renowned for its long streets of Victorian terrace houses intermixed with multi-storey brick warehouses and other remnants of Sydney’s inner-city past. The past twenty years has seen the gentrification of the area, which now houses creative and design industries, a wide range of hospitality and retail businesses, and multi-million-dollar residences. At the southern end of the main arterial street of Surry Hills is the site of Crown 515. The large, freestanding terrace was a curious remnant in an otherwise continuous streetscape. The challenge for Smart Design Studio was to create a new infill development that integrated the existing terrace while allowing the new structure to have a clear expression of independence. Having to create distinct architectural identities on multiple street fronts further increased the complexity of the project, but in the end resulted as a catalyst of the scheme’s resolution.

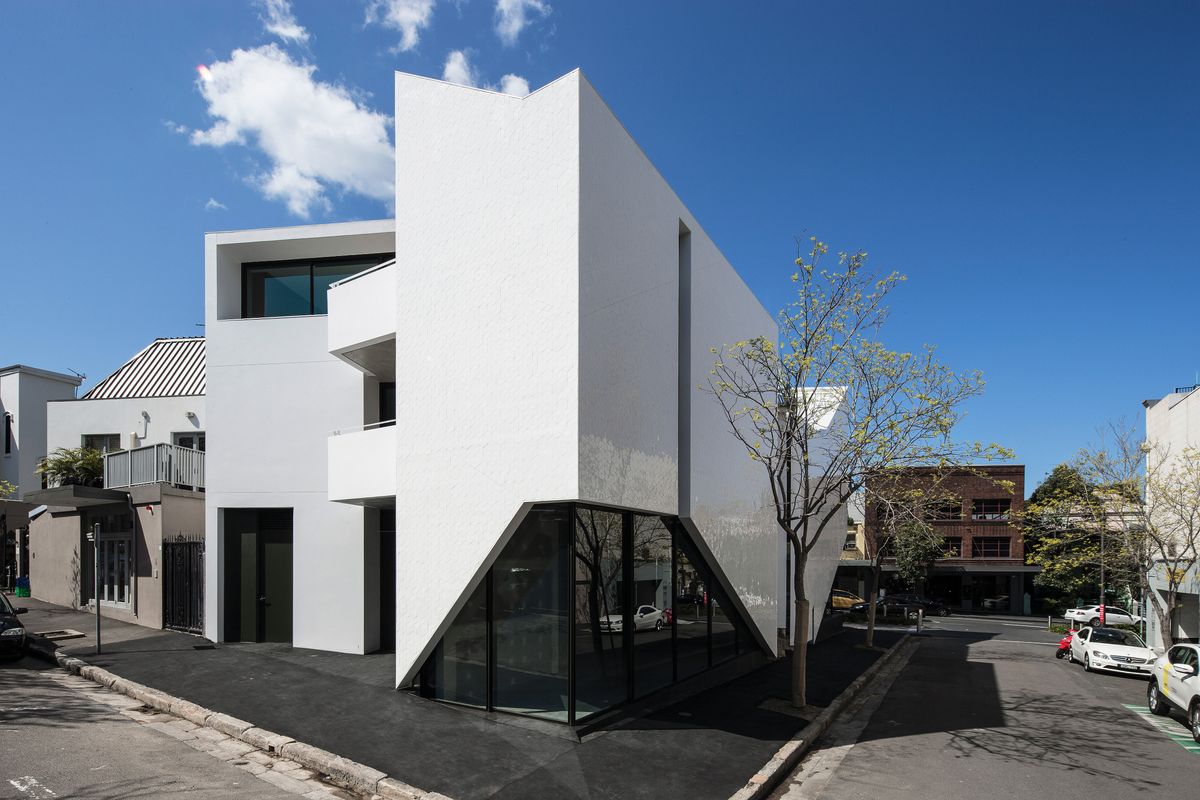

The western facade provides an appropriate residential address for the apartments, with the ground-floor hospitality tenancy taking the more public Crown Street entry.

The western facade provides an appropriate residential address for the apartments, with the ground-floor hospitality tenancy taking the more public Crown Street entry.

Image: Ross Honeysett

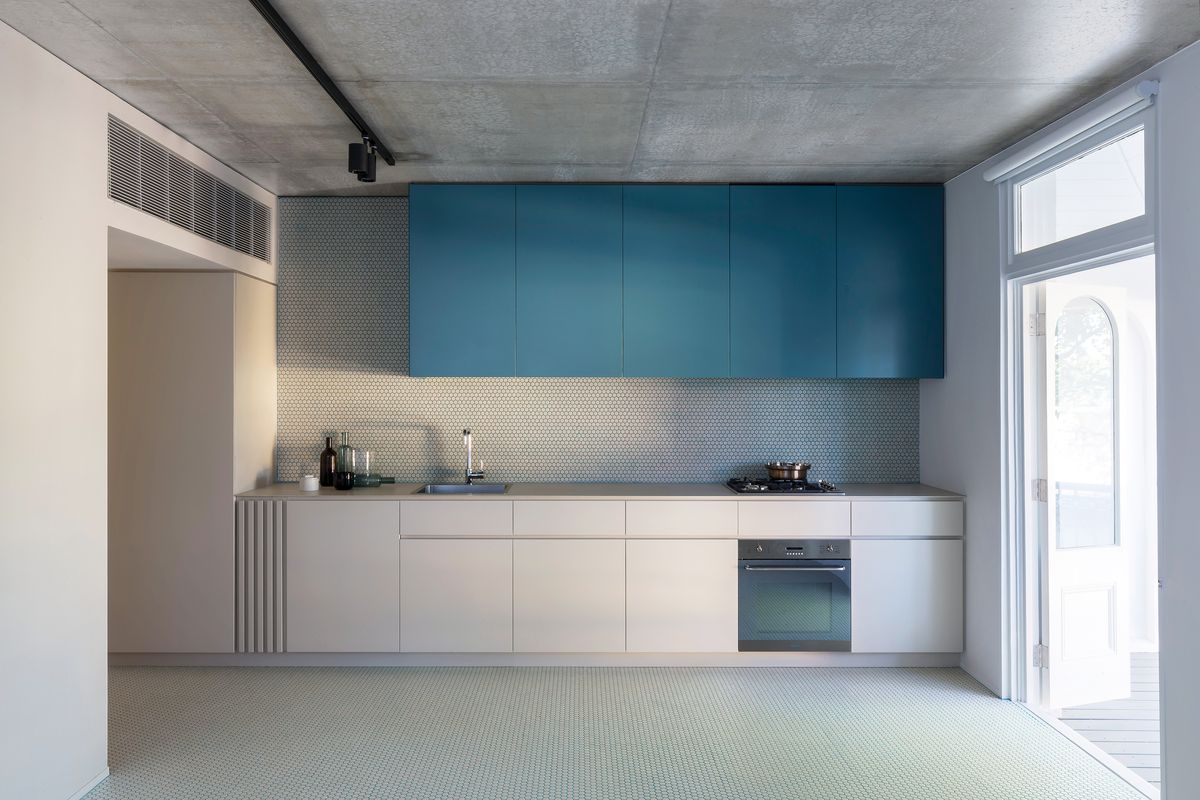

The strategy was threefold: firstly, the Crown Street facade would relate to the language of the existing terrace, with bipartite division of the horizontal plane; secondly, the corner would introduce a splayed vertical element that marks the ground-floor hospitality function while also allowing for a new architectural language to be developed along Miles Street; and finally a subdued masonry-like configuration of the rear facade on High Holborn Street would provide an appropriate residential address to the development. In order to successfully achieve this act of architectonic gymnastics, Smart Design Studio has had to take a somewhat riskier approach than is normally seen in Sydney. Rather than completely defer to the language of the terrace, the architects have respectfully done so on the Crown Street facade, yet defiantly stated their independence on the Miles Street facade. The game played is one of pure formalism, as the terrace is only retained in fragmentary remnants that emerge in bits and pieces as required. The interior of the old terrace has been erased to allow for the multiple functions of the new project to work. One of the most striking features of the exterior is the white tile cladding. Close to home, the tiles are reminiscent of the Sydney Opera House, but also hark back to traditional Portuguese architecture, with Surry Hills having a long association with the Portuguese community.

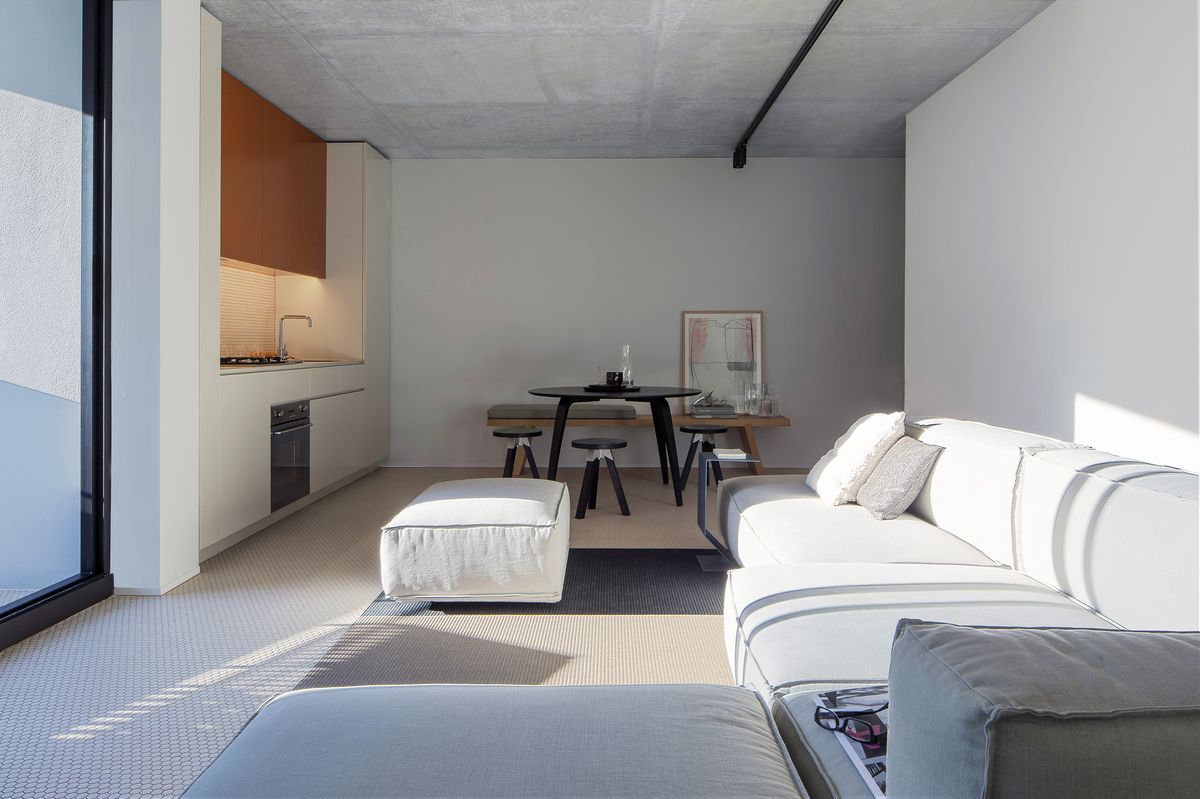

The apartment interiors push the boundaries of what is expected in multiresidential developments in Sydney. Artwork: David Band, Untitled No. 1 (in collaboration with Fraser Taylor) , 2007.

The apartment interiors push the boundaries of what is expected in multiresidential developments in Sydney. Artwork: David Band, Untitled No. 1 (in collaboration with Fraser Taylor) , 2007.

Image: Ross Honeysett

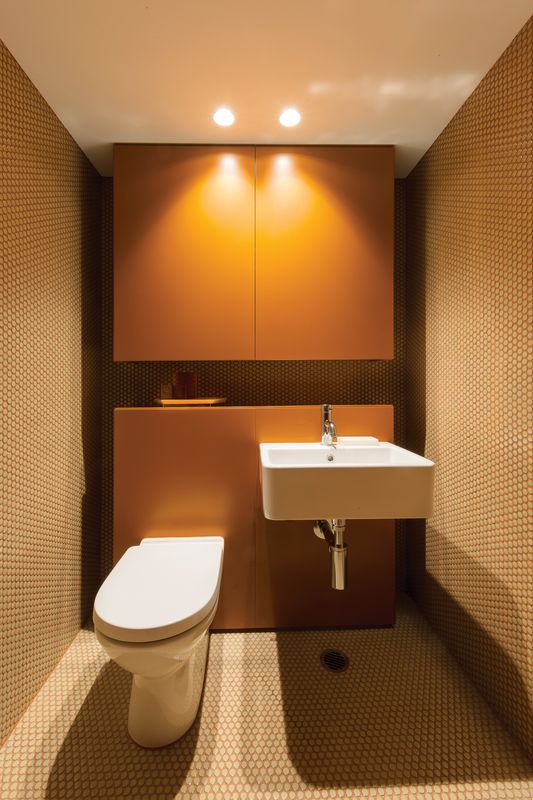

The entire ground floor is dedicated to a hospitality tenancy and the two upper floors hold residential apartments. An interesting aspect of the project is that the developer built the apartments to be long-term rentals, rather than “build and buy.” This meant that Smart Design Studio could be more adventurous in the design of the interior of the residences than a conventional speculative development may have permitted. While the exterior of the building is in glistening white, the residential entry at the rear immediately introduces colour. A dark, forest green and peach pink greet you at the main door. White is banished in the stairwell as you are immersed in greens and blues. The flooring is a black hexagonal tile with blue grout. This flooring continues into each of the residences, changing from black to white over the threshold. Within each unit the grout and joinery has been matched, so that in some the white hexagonal tile is grouted in a burnt sienna colour with matching kitchen and bathroom cabinetry, whereas in others it is powder blue or moss green. The residences on the first floor have exposed concrete ceilings, which, together with the tiled floors, push the boundaries of finishes in multiresidential developments in Sydney.

This development has added to the urban fabric of Surry Hills, and it has done so in an explosive fashion. Like the winged form of its facade, it is simultaneously respectful and disruptive, decorous and daring. Careful consideration, analysis and integration of the extant terrace allowed Smart Design Studio to acknowledge what good the past has to offer, but also to propose innovation where opportunity invited.

Products and materials

Roofing
Lysaght Custom Orb in Colorbond ‘Whitehaven’ and Klip-Lok in Colorbond ‘Surfmist’.
External walls
ColorTile diamond-glazed, porcelain mosaic tiles in gloss white; Laticrete substrate to facade tiles.
Windows and doors
Custom steel-framed windows and doors by Jamie Sargeant; Architectural Window Systems anodized aluminium-framed windows and doors; Viridian ComfortPlus Neutral 59 glazing.
Flooring
Porcelain hexagonal mosaic tiles from Academy Tiles; Feltex Carpets level loop pile carpet in ‘Smalt Blue’.
Lighting
Opal Lighting Cylandro light and internal track lighting; Boaz downlights and external wall lights.
Kitchen
Smeg cooktop and electric oven; Oliveri Sonetto sink; Methven Minimalist Curved Gooseneck sink mixer; joinery in 2-pac finish by Nu Space; Laminam benchtop in ‘Avorio’; porcelain hexagonal mosaic tiles from Academy Tiles; Mapei cement grout.
Bathroom
Caroma Cubus wall basin; Methven Minimalist basin mixer; Villeroy and Boch O.novo washdown wall-mounted toilet; Grohe Tempesta Cosmopolitan shower rail set; penny round ceramic tiles from Academy Tiles; Mapei cement grout.
External elements
Bluestone tiles from Eco Outdoor; custom planter boxes.

Credits

Architect
Smart Design Studio
Sydney, NSW, Australia
Project Team
William Smart, Glenn O’Loughlin, Peter Badger, Anna Chan, Ronald Wibisono, Jolyon Sykes, Nicole Leuning
Consultants
BCA consultant Environet Consultancy
Builder Calida
Heritage GBA Heritage
Landscape designer Michael Zinn
Planning RPS Group
Quantity surveyor QS Plus
Services engineer Northrop Consulting Engineers
Structural engineer Cantilever Consulting Engineers
Site details
Location Sydney,  NSW,  Australia
Site type Suburban
Site area 310 m2
Category Residential buildings
Type Alts and adds, Apartments, Residential
Project Details
Status Built
Completion date 2016
Design, documentation 12 months
Construction 15 months

Source

Project

Published online: 8 Aug 2017
Words: Sing d'Arcy
Images: Ross Honeysett

Issue

Houses, April 2017
