Brick by brick: Grey Street House

A celebration of the process and legacy of making, this house by Local Architecture transcends its modest site and budget through strategic manipulations of light and form.

Arising from the constraints of a modest site and budget, Grey Street House by Local Architecture celebrates the beauty of humble materials and the legacy and process of making. Sitting respectfully behind an established heritage house just two hundred metres from Success Boat Harbour in Western Australia, the 170-square-metre dwelling addresses issues of privacy, access and planning to deliver a comfortable family home that nurtures the daily rituals of living.

Vertical subway tiling and a stone benchtop bring a refined quality to the restrained kitchen.

Vertical subway tiling and a stone benchtop bring a refined quality to the restrained kitchen.

Image: Dion Robeson

The footprint of the home was informed by the prevailing conditions of the 250-square-metre site, including narrow right-of-way access, a tight vehicle turning radius, boundary and shading setbacks and an existing sewer easement. Architect Natalie Miller considered the available volume and how it could be manipulated to adhere to height restrictions and maximize solar performance while maintaining privacy and sunlight for neighbours. This spatial problem-solving resulted in a striking rectilinear form with a pitched roof, interspersed with openings that carefully balance proportion, orientation and location to draw in light.

The raked roofline helps to craft angular, attic-like bedrooms that retain a sense of privacy. Artwork: Jordy Hewitt.

The raked roofline helps to craft angular, attic-like bedrooms that retain a sense of privacy. Artwork: Jordy Hewitt.

Image: Dion Robeson

A low-maintenance material with resilience against salt-laden coastal winds was sought, and red brick was nominated as the principal building material early on. A substantial insulated cavity in the building envelope conceals all structure and services and delivers excellent acoustic performance and thermal com-fort. Following an extensive survey of Fremantle’s brick palette and textures, Natalie played on traditional Flemish bond brick patterning to make a contemporary contribution to the legacy of brick construction in the area. “The header course is either flush within the bond pattern, removed to make the brick screen or in relief to make the highly textured facade that changes throughout each day,” Natalie explains.

A brick planter and letterbox provide an offering to the street and act as a beacon for locating the house behind. Visitors are led to a recycled steel gate, where a large brick planter and perforated brick screen mediate the transition to the north-facing jarrah deck and garden – the entry to the house. An excavated alcove provides shading along the northern edge and is treated as a blackened threshold to the living and dining areas. The absence of a traditional front door allows visitors to step directly into the heart of the house, imparting a sense of informality and familiarity that sets the tone for the project.

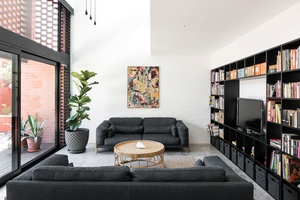

Honed concrete floors and white-painted brick walls provide a neutral and tactile base palette. Artwork: Jordy Hewitt.

Honed concrete floors and white-painted brick walls provide a neutral and tactile base palette. Artwork: Jordy Hewitt.

Image: Dion Robeson

Internally, program spaces are strategically arranged around a central stair. The kitchen, living and dining spaces face north and are directly connected to the entry deck and garden. A sixty-five-year-old olive tree that was relocated to the north-west corner provides an abundance of shade from the hot afternoon sun and a brick barbecue area offers a robust plinth for cooking and entertaining.

The house’s burnished concrete floors and white-painted brick walls provide a neutral and tactile base palette for the interior. The kitchen is articulated with restraint; American oak cabinetry is darkened with black japan stain, offering a subtle tactility, while a fine, white engineered stone benchtop and vertical subway tiling provide a refined and contemporary feel. The living area offers a generous vertical volume to the roof ridge, while the perforated brick screen casts ephemeral patterns across the double-height wall throughout the day.

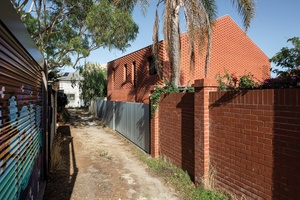

The house’s striking rectilinear form and pitched roof make the most of a tight site.

The house’s striking rectilinear form and pitched roof make the most of a tight site.

Image: Dion Robeson

Vehicle access is via a rear right-of-way and a double carpark is provided in a carport to the east. A roller door conceals a plywood-lined “man cave” with a robust workbench and ample storage for tools, fishing gear and five bikes. A playful, china blue entry door leads occupants to the southern “mudroom,” a place of coming and going, for hats, coats, shoes, helmets, bags and umbrellas. Local remilled jarrah treads and risers gently sheath the central stair, ascending to the centre of the house: a bright and welcoming office space. Despite the small footprint of the house, privacy is maintained through the upper level by locating the three bedrooms in the corners of the floor plate with no shared walls. The raked roofline creates a sense of spatial compression in the bedrooms, crafting intimate, attic-like rooms.

Although the home has no “special” view, windows are strategically sized and positioned to edit glimpses of native trees and nearby rooftops and to draw in natural light. Three operable sky-lights to the south provide diffused light and effective cooling, while all operable windows are louvred to invite cooling sea breezes to enter the interior. Pivot doors allow generous openings to the bedrooms, enabling breezes to flow through the house.

<!— /5912001/AAU_AU_MR_side_300x250 —> <div id=’div-gpt-ad-1490926265173-2-mob’> <script> googletag.cmd.push(function() { // googletag.pubads().refresh([gptRespAdSlots[0]]); googletag.display(‘div-gpt-ad-1490926265173-2-mob’); }); </script> </div>

The bathroom and ensuite are at the western edge, where a continuation of black-stained cabinetry is complemented by a natural-toned tile that lines the floor and walls. Conceived as a Japanese-style wet room, the ensuite’s tiled alcove offers a tranquil retreat flooded with soft natural light.

A void to the lower level occupies the fourth corner of the upper floor plate and connects the house vertically. From each space, occupants can cast their gaze through adjacent spaces. “In this way,” Natalie explains, “the spaces borrow from each other and have allowed for the inclusion of program elements not often seen in a house of this size.”

Indeed, a feeling of spaciousness is maintained in Grey Street House that provides a high level of amenity through access to natural light and ventilation. At its core, “the project is about making – making with brick, making with light and making the most of things,” says Natalie. Through strategic design thinking, Local Architecture has demonstrated the possibilities of subdivision, resulting in a house that has longevity and purpose and hums with the activities of family life.

Products and materials

Roofing
Fielders S-Rib corrugated roof sheet; CSR Bradford Light Duty Anticon 55 insulation.
External walls
Midland Brick Commons and Heritage Red bricks.
Internal walls
Midland Brick Commons bricks; timber-framed 13-mm plasterboard in Dulux Wash and Wear low sheen paint.
Windows
Architectural Window Systems Icon hardware and aluminium framing; Viridian VTough toughened glass; Breezway Altair Louvre Windows.
Doors
Joey Cavity Units Joey Boomer custom cavity slider; Made Measure leather loops ‘Natural’; Lockwood pivot stainless steel hardware.
Flooring
Remill recycled jarrah floorboards in Osmo Polyx-Oil satin matt finish.
Lighting
Inlite Ecostarr LED downlights; Santa and Cole Max Bill pendant from Mobilia; Nordic Tales Bright Sprout pendants; Muuto E27 pendants.
Kitchen
a2f Tartana R kitchen mixer; Franke undermount sink; Smeg Fab 32 fridge; QStone benchtops in ‘Supreme White’; Fisher and Paykel cooktop, oven, microwave and dishwasher.
Bathroom
Caroma Marc Newson tapware, basins, toilet suites and showers; Scout Regalia SR wall hooks; custom outdoor shower by the architect in bare brass and copper; Casalgrande Padana floor and wall tiles in ‘Natural White’.
Heating and cooling
Velux electric skylights; Vertilux roller blinds.
External elements
Midland Brick heavy-duty clay pavers in ‘Red’; Remill recycled jarrah decking in Organoil finish.
Other
Nomi Time dining table and Woodstack chairs; Joquer Time sofas with Kvadrat upholstery from Mobilia; Raw Edge Furniture cabinetry; Concrete Studio outdoor sink; Steadyrack bike racks.

Credits

Architect
Local Architecture
Fremantle, WA, Australia
Project Team
Natalie Miller
Consultants
Bricklayer Arch Brickmasonry
Builder Natalie Miller
Building surveyor MSA Group
Energy consultant Housecat Energy Efficiency Assessments
Site details
Location Perth,  WA,  Australia
Site type Suburban
Site area 250 m2
Building area 170 m2
Category Residential buildings
Type Houses, Residential
Project Details
Status Built
Design, documentation 12 months
Construction 18 months

Source

Project

Published online: 6 Dec 2017
Words: Hayley Curnow
Images: Dion Robeson

Issue

Houses, October 2017
